The PixLite E16-S Mk3 is an economical, but powerful pixel LED controller built upon Advatek’s 3rd generation PixLite Mk3 processor. The feature set of this processor are too significant to fit here, explore in the PixLite Mk3 Processor Datasheet

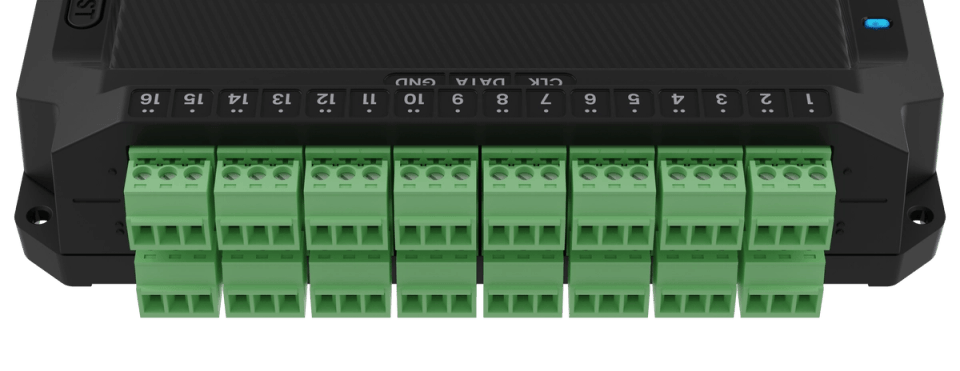

The PixLite E16-S Mk3 drives up to 6 universes of data on each of its 16 outputs for a total of 96 universes of LED pixel control. The easily accessible and removable screw terminal blocks each have three pins [Clock | Data | Ground], which is suitable for installations where pixel power is not routed through the pixel controller
SHOWTIME
SHOWTime™ unleashes the potential of Advatek PixLite® Mk3 devices to independently drive light shows without a computer or any source of live data. SHOWTime™ allows users to record and play back pixel shows from the PixLite E16-S Mk3 using the inbuilt microSD slot. Design your own breathtaking pixel shows, record them directly onto the microSD card and play them back as many times as you wish. SHOWTime™ also unlocks the ability to create up to 25 powerful triggers and use advanced intensity controls to enable true standalone behavior and enhance live environments
BUDGET FRIENDLY
Lower the cost of your installation with the removal of some features that are standard on most of the PixLite Mk3 range, like powered pixel outputs, smart electronic fuses, dual gigabit Ethernet ports and universe data hardware firewall
FAULT PROTECTION
Features electrical fault protection on all ports resulting in higher reliability and fewer equipment failures. See details on next page.

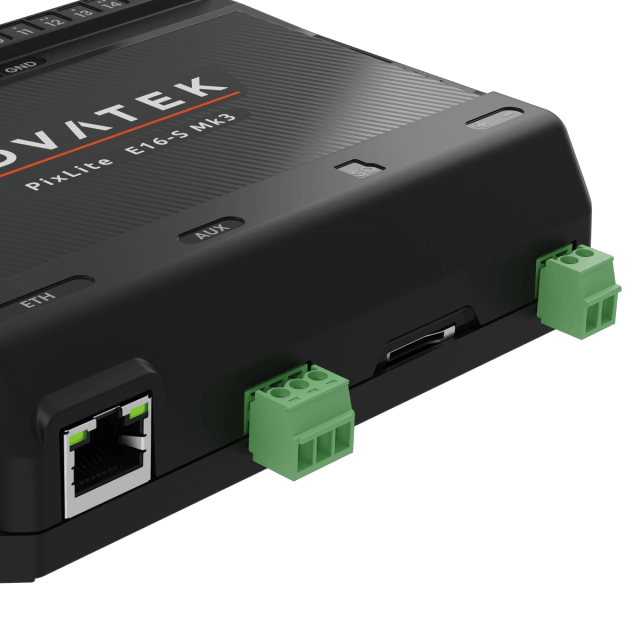

AUXILIARY PORT
Versatile RS485 Auxiliary port can be used as either an input or an output. As an output, connect DMX512 devices to the port and control them via sACN or Art-Net. As an input, connect a DMX512 source directly to the PixLite and use DMX512 as the data source for your pixels, or as a trigger source, or as a live intensity data source.
5 YEAR WARRANTY
For your absolute peace of mind, all Mk3 products come with a 5-year warranty. All products need to be used and installed in accordance with their designed purpose and operating environment. Please register your product on our website
