The PixLite R2F-S is a pixel LED controller that's built to last and has all the protection one needs for peace of mind with professional installations.
Paired with a PixLite T8 controller, the PixLite R2F-S receives differential (long distance) data and converts it into a pixel ready signal. Perfect for any professional installation, particularly when the LEDs will be separated by some distance.
2 FULL PIXEL OUTPUTS
2 individually fused outputs suitable for clocked or data-only pixel LEDs (see next page for details)
FAULT PROTECTION
Features electrical fault protection on all inputs and all pixel output lines, resulting in higher reliability and less equipment failures over time. Each output also includes a 7.5A mini blade fuse which will help protect the pixels and power supply in a fault condition, as well as keeping the installation safe. See details on next page
SMALL FORM FACTOR
Compact, lightweight, slimline unit designed for mounting in tight spaces

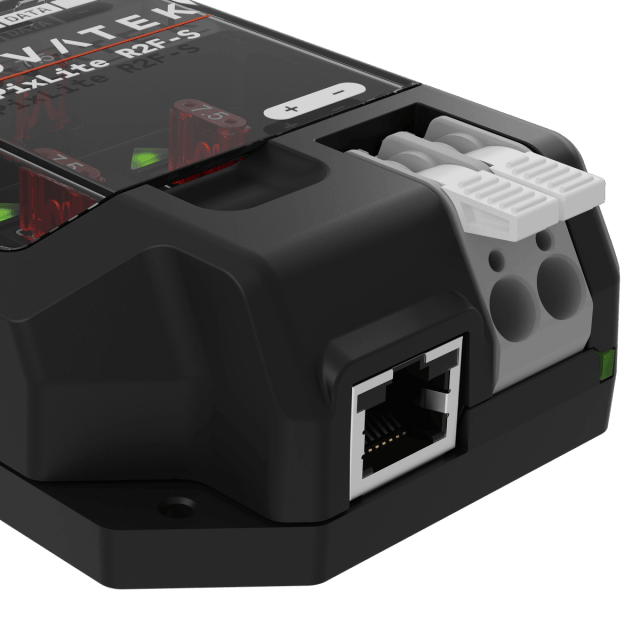

QUICK CONNECT POWER
High current quick connect clamp connector for fast and reliable power connection
